Semana 7

Sesión 1 y 2

En esta sesión realizaremos la retroalimentación del parcial número 2.

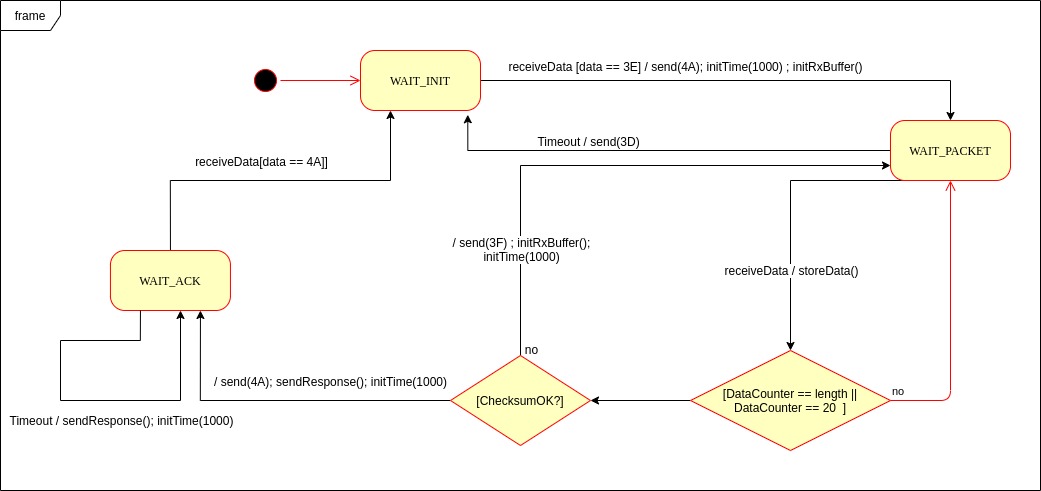

Un posible modelo de la solución es este:

../_images/parcial2SM.jpg

Y una posible implementación del modelo es este otro modelo en C++:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
 void setup() {
   Serial.begin(115200);
 }

 void taskCom() {
   enum class state_t {WAIT_INIT, WAIT_PACKET, WAIT_ACK};
   static state_t state = state_t::WAIT_INIT;
   static uint8_t bufferRx[20] = {0};
   static uint8_t dataCounter = 0;
   static uint32_t timerOld;
   static uint8_t bufferTx[20];

   switch (state) {
     case  state_t::WAIT_INIT:
       if (Serial.available()) {
         if (Serial.read() == 0x3E) {
           Serial.write(0x4A);
           dataCounter = 0;
           timerOld = millis();
           state = state_t::WAIT_PACKET;
         }
       }

       break;

     case state_t::WAIT_PACKET:

       if ( (millis() - timerOld) > 1000 ) {
         Serial.write(0x3D);
         state = state_t::WAIT_INIT;
       }
       else if (Serial.available()) {
         uint8_t dataRx = Serial.read();
         if (dataCounter >= 20) {
           Serial.write(0x3F);
           dataCounter = 0;
           timerOld = millis();
           state = state_t::WAIT_PACKET;
         }
         else {
           bufferRx[dataCounter] = dataRx;
           dataCounter++;

           // is the packet completed?
           if (bufferRx[0] == dataCounter - 1) {

             // Check received data
             uint8_t calcChecksum = 0;
             for (uint8_t i = 1; i <= dataCounter - 1; i++) {
               calcChecksum = calcChecksum ^ bufferRx[i - 1];
             }
             if (calcChecksum == bufferRx[dataCounter - 1]) {
               bufferTx[0] = dataCounter - 3; //Length
               calcChecksum = bufferTx[0];

               // Calculate Tx checksum
               for (uint8_t i = 4; i <= dataCounter - 1; i++) {
                 bufferTx[i - 3] = bufferRx[i - 1];
                 calcChecksum = calcChecksum ^ bufferRx[i - 1];
               }

               bufferTx[dataCounter - 3] = calcChecksum;
               Serial.write(0x4A);
               Serial.write(bufferTx, dataCounter - 2);
               timerOld = millis();
               state = state_t::WAIT_ACK;
             }
             else {
               Serial.write(0x3F);
               dataCounter = 0;
               timerOld = millis();
               state = state_t::WAIT_PACKET;
             }
           }
         }
       }

       break;

     case state_t::WAIT_ACK:
       if ( (millis() - timerOld) > 1000 ) {
         timerOld = millis();
         Serial.write(bufferTx, dataCounter - 2);
       } else if (Serial.available()) {
         if (Serial.read() == 0x4A) {
           state = state_t::WAIT_INIT;
         }
       }

       break;
   }
 }


 void loop() {
   taskCom();
 }

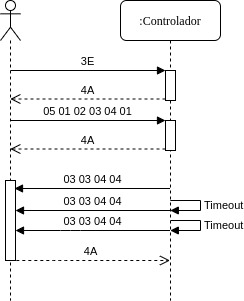

Un ejemplo de una escenario de prueba:

../_images/vector1.jpg
